Flow measurements in open channels. No Flume Required




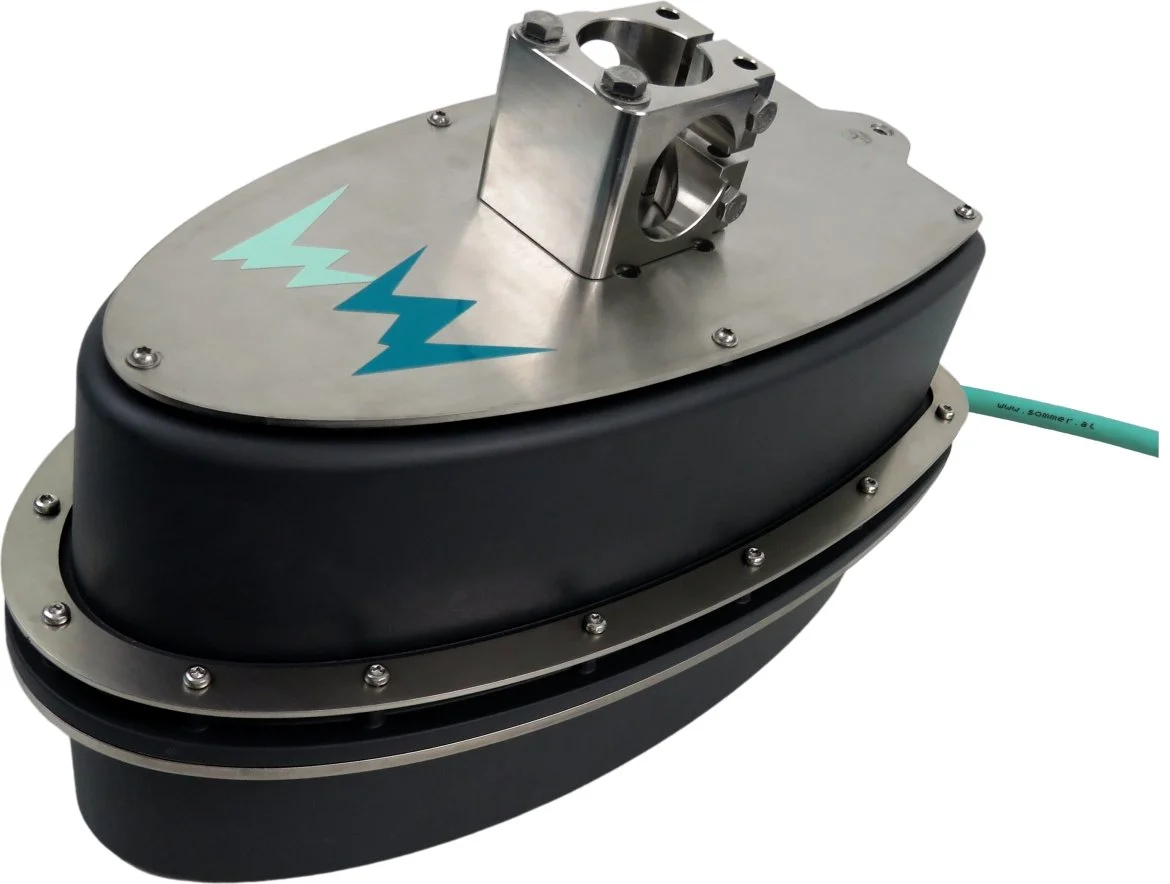

SQ-R Non-Contact Radar flow measuring system for wastewater treatment plants, sewers, and industrial open channel Applications

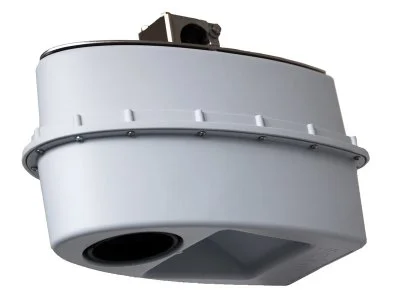

SQ Flow Meter.jpg

Features and Benefits

  • Non-contact measurement, maintenance-free system

  • Calculation of discharge by continuous measurement of flow velocity and water level

  • No construction measures necessary in the sewer

  • Waterproof and resistant housing also for use in aggressive environments

  • Wide measuring range from a few liters up to several cubic meters per minute

  • High data availability even with intensive turbidity and high solids content

  • Easy integration into existing measuring and control systems

  • Self-check function supports correct installation and high data quality

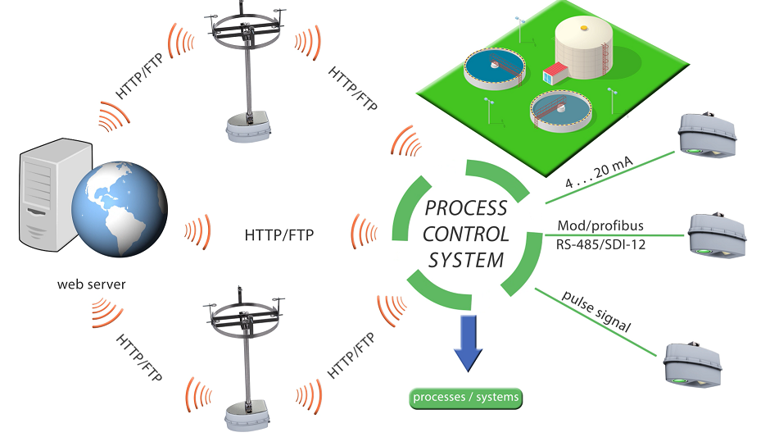

  • Versatile measurement output via RS-485, Modbus, SDI-12, pulse and analog signal

  • Integrated hydraulic model for precise flow calculations

  • Easy configuration with SQ-Commander software

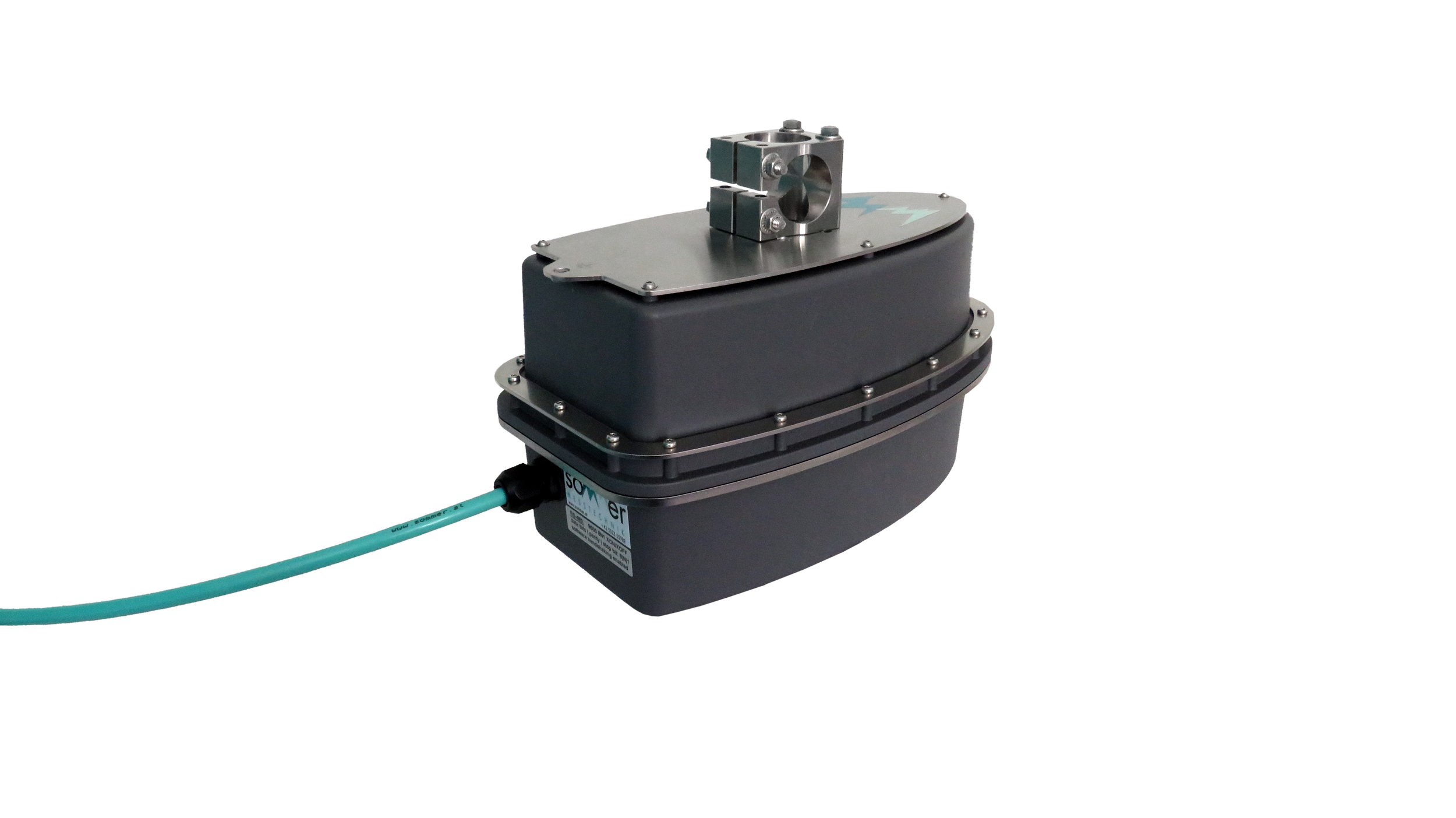

Description

The SQ-R measures continuously and contact-free the flow rate of effluent channels, partially filled pipes, and technical ducts in industry and water supply. The SQ-R is not in contact with the water and can therefore be operated without being affected by debris and entrained solids. With its compact design and versatile mounting options, it is the ideal choice for flow measurements in manholes of facilities and sewers.

The SQ-R is specially designed for municipal and industrial applications in wastewater treatment plants, sewers, and process water circuits. For example, the amount of wastewater entering a treatment plant can be monitored to control the facility and allocate wastewater costs. Furthermore, the duration and frequency of rain and flood events can be recorded, which is essential for sewer management by plant operators and utilities.

Due to its compact design and flexible mounting device, the sensor is very easy to install, for example under bridges or extensions, on ceilings of sewers or in manholes. The non-contact measuring technology has the decisive advantage that the sensor can be mounted above the water level. Thus, the SQ-R can be easily installed, is readily accessible and cannot be clogged or blocked by entrained solids, which is often the case with submerged sensors.

A specially designed adjustable mounting bracket is available for installation in manholes of sewers.




Water Flow Measurement by Non-Contact Radar Flow Meter

Typical Installations

Water Treatment Plants

Industrial Effluent

Sewage System (No Flume Required)

Irrigation Canals

Stormwater Canals

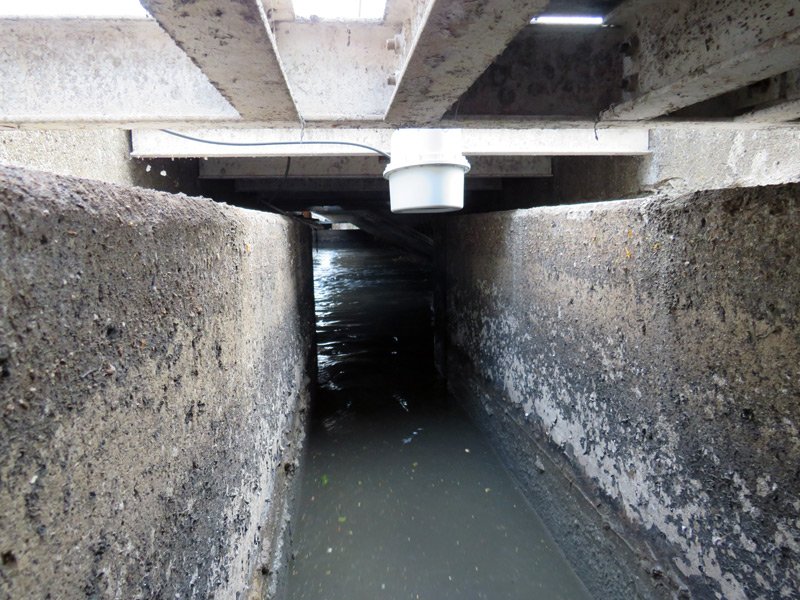

SQ in narrow open channel.jpg

Installation in narrow open channels

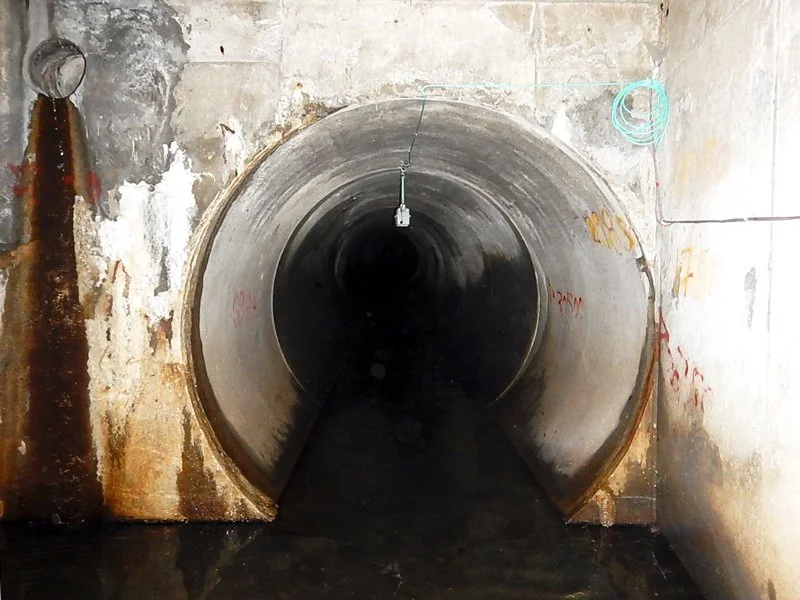

SQ-R Radar Flow Measuring System in Pipe.jpg

Monitoring Flow in A Sewer System with the SQ-R Radar Flow Meter

Flow measurements in narrow open channel without a flume or weir

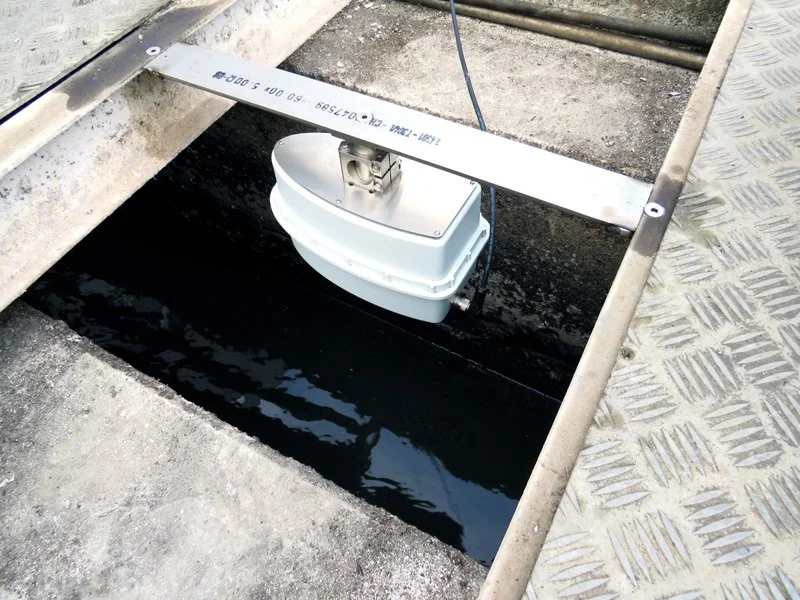

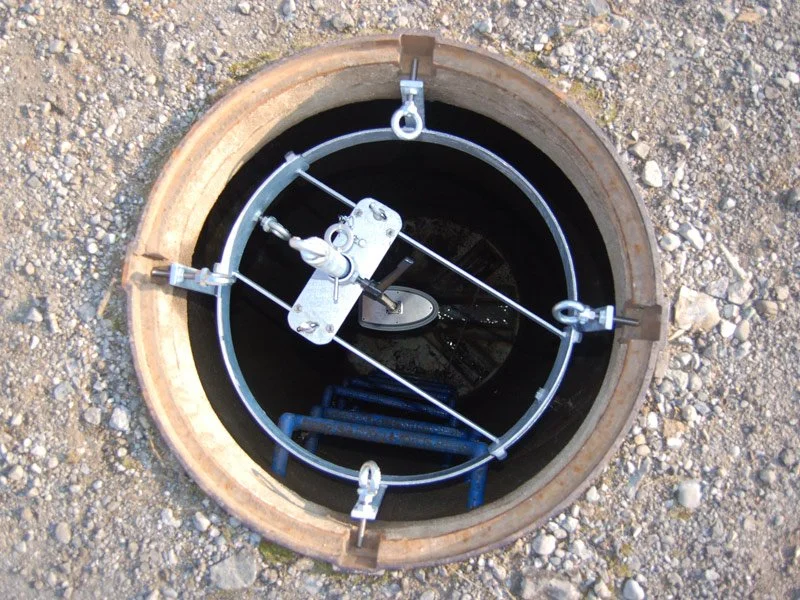

Manhole Installation_No confined space entry required.jpg

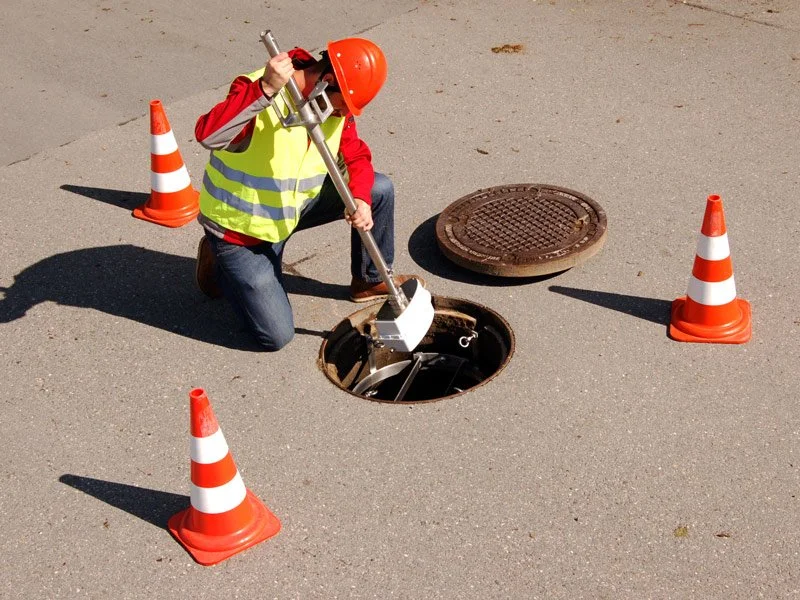

SQ-R Radar Flow Meter Manhole Installation

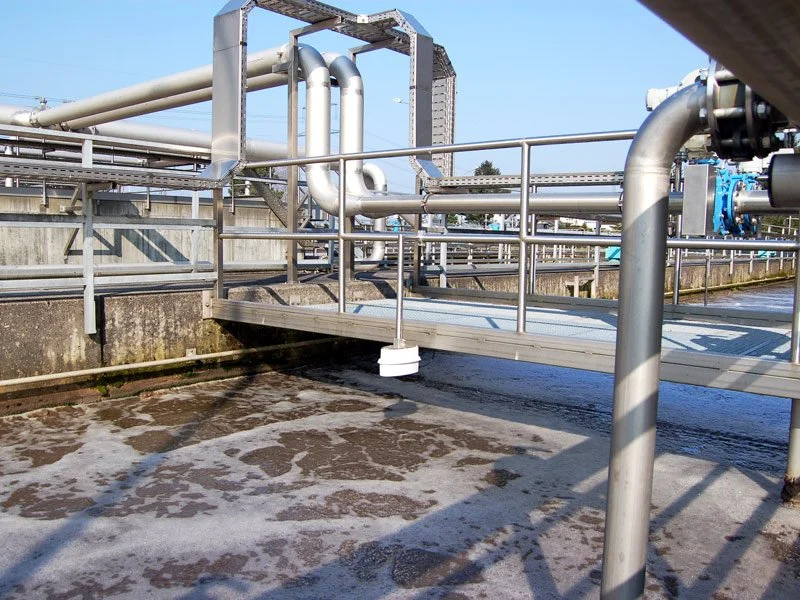

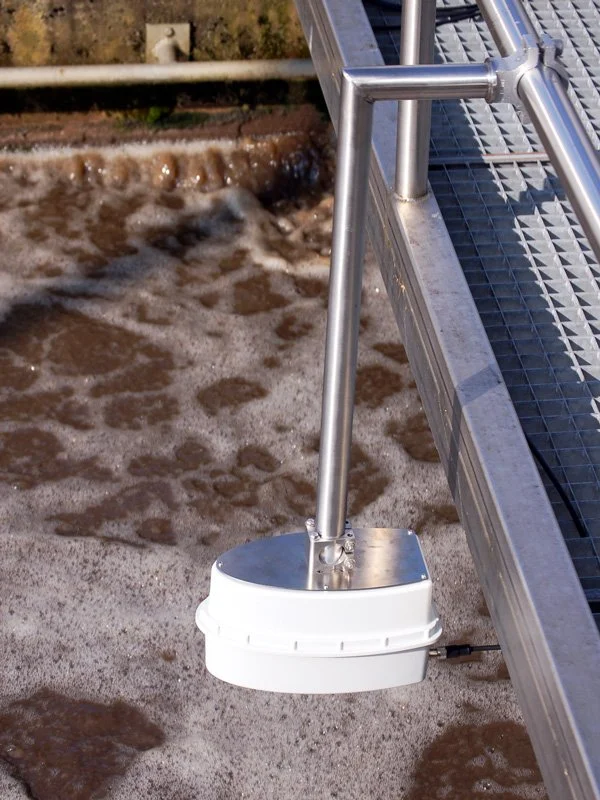

SQ Flow Meter at Wastewater Treatment Plant.jpg

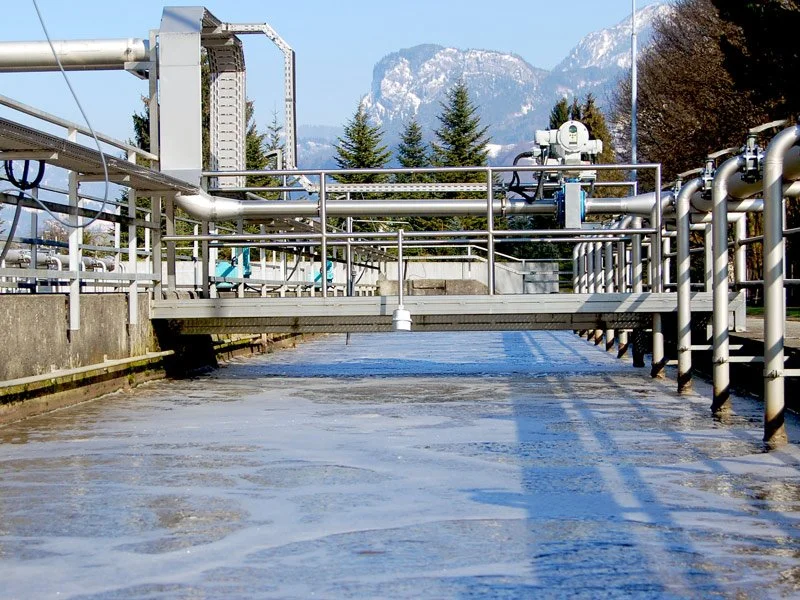

Using the SQ-R Radar Flow Meter in Wastewater Treatment Facilities



How does it work?

Flow velocity

A 24 GHz radar sensor measures the velocity of the water surface. Radar impulses are transmitted at an angle towards the water surface where ripples and waves induce a Doppler frequency shift that is detected by the SQ-R.

Water level

A radar sensor measures the distance between the SQ-R and the water surface by registering the travel time of an impulse sent towards the water surface. An ultrasonic level sensor is available on request.

Water discharge

The discharge Q is computed by the SQ-R:

Q = vm * A (h)

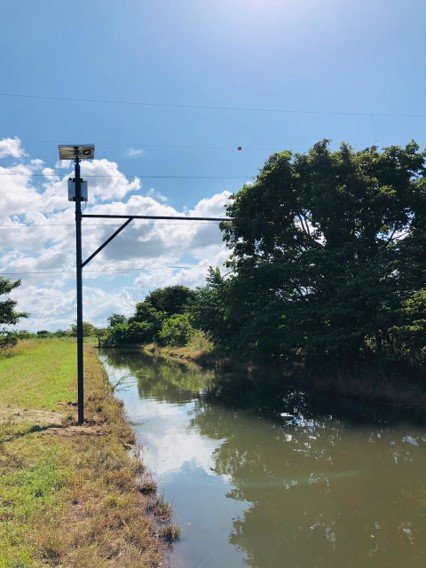

SQ-R Flow Meter_Field Installation.jpg

Take it to the field.

The SQ-R Radar Non-Contact Flow Meter can be used to measure and monitor flow in a variety of applications.
