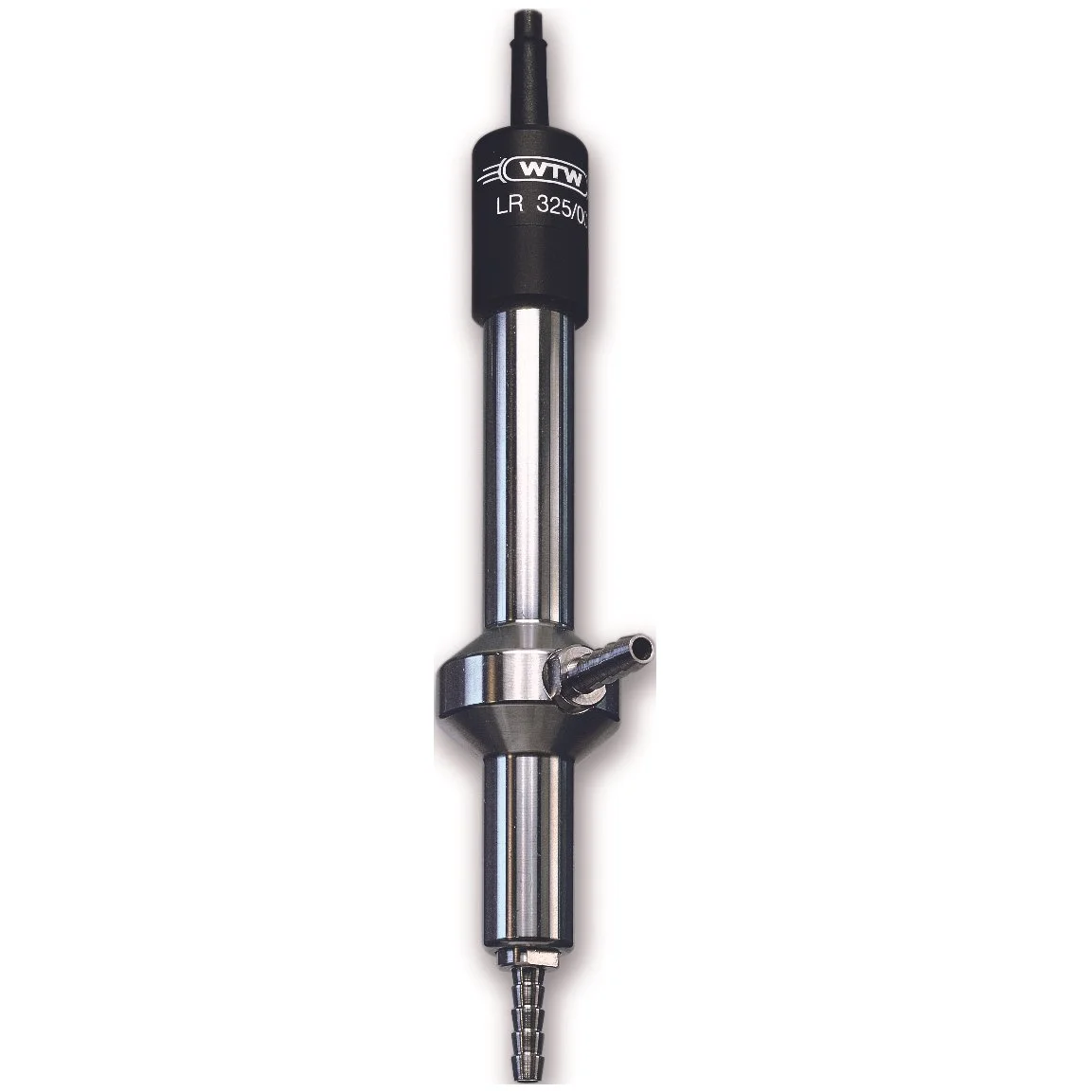

WTW LR325/01 and LR352-001 Conductivity Cell (Ultra Pure Water)
Brand: WTW
Two electrode measuring cells with concentric electrodes of stainless steel and flow vessels made of glass or stainless steel for measurements of ultra pure water
Precise measured values thanks to concentric electrodes without boundary field
Includes flow vessels to prevent wrong results due to carbon dioxide
No polarization effects thanks to stainless steel electrodes
Ultrapure water conductivity cell with built-in temperature sensor and waterproof plug, cell constant K = 0.1 cm-1, glass
flow-through vessel D01/T.
Trace conductivity cell with built-in temperature sensor, cable and waterproof plug, cell constant K = 0.01 cm-1, stainless steel flow-through vessel.
Brand: WTW
Two electrode measuring cells with concentric electrodes of stainless steel and flow vessels made of glass or stainless steel for measurements of ultra pure water
Precise measured values thanks to concentric electrodes without boundary field
Includes flow vessels to prevent wrong results due to carbon dioxide
No polarization effects thanks to stainless steel electrodes
Ultrapure water conductivity cell with built-in temperature sensor and waterproof plug, cell constant K = 0.1 cm-1, glass
flow-through vessel D01/T.
Trace conductivity cell with built-in temperature sensor, cable and waterproof plug, cell constant K = 0.01 cm-1, stainless steel flow-through vessel.
Brand: WTW
Two electrode measuring cells with concentric electrodes of stainless steel and flow vessels made of glass or stainless steel for measurements of ultra pure water
Precise measured values thanks to concentric electrodes without boundary field
Includes flow vessels to prevent wrong results due to carbon dioxide
No polarization effects thanks to stainless steel electrodes
Ultrapure water conductivity cell with built-in temperature sensor and waterproof plug, cell constant K = 0.1 cm-1, glass
flow-through vessel D01/T.
Trace conductivity cell with built-in temperature sensor, cable and waterproof plug, cell constant K = 0.01 cm-1, stainless steel flow-through vessel.
Ordering Options
LR325/01 Ultrapure water conductivity cell with built-in temperature sensor and waterproof plug, cell constant K = 0.1 cm-1, glass flow-through vessel D01/T (PN 301961)
LR325/001 Trace conductivity cell with built-in temperature sensor, cable and waterproof plug, cell constant K = 0.01 cm-1, stainless steel flow-through vessel (PN 301962
KKDU 325 Connection cable, 3.3 ft (1 m), 8-pin plug, for flow-through conductivity cells TetraCon® DU/T, TetraCon® DU/TH, KDU 1/T and KDU 1/TH (PN 301963)
Specifications
Measuring principle: 2 electrodes measuring cell
Measuring Range: 0.001 µS/cm ... 200 µS/cm (LR325/01 and 0.0001 µS/cm ... 30 µS/cm (LR325/001)
Cell constant: K = 0.1 cm-1 (LR325/01) and K = 0.01 cm-1 (LR325/001)
Resolution: Depends on measuring range
Temperature sensor: Integrated NTC
Temperature Measurement: -5 °C ... 80 °C
Maximum pressure: 2 bar
Electrical Connection: Integrated cable mit 8-pole plug
Mechanical:
Shaft: Stainless steel 1.4571
Electrodes: Stainless steel 1.4571
Protection Rating: IP68 (Sensor and cable)
