LevelScout, Level and Temperature Recorder
Brand: Seametrics
Features
Measures level and temperaure
Thermally compensated—great where water temperatures vary, such as in streams or industrial tank applications
± 0.05% FS
Low power—4.5 year battery life
316 stainless steel, fluoropolymer, and acetal construction (titanium optional)
Modbus® RTU protocol—for great flexibility
on-volatile memory—your data will not be lost in the event of a power failure
Pause logging feature—temporarily pause the logging while repositioning or transporting sensor
Delayed start feature—state a specific future start time, making it easy to set several sensors to start at the same time
Call for price match
Related Products: BaroSCOUT
Brand: Seametrics
Features
Measures level and temperaure
Thermally compensated—great where water temperatures vary, such as in streams or industrial tank applications
± 0.05% FS
Low power—4.5 year battery life
316 stainless steel, fluoropolymer, and acetal construction (titanium optional)
Modbus® RTU protocol—for great flexibility
on-volatile memory—your data will not be lost in the event of a power failure
Pause logging feature—temporarily pause the logging while repositioning or transporting sensor
Delayed start feature—state a specific future start time, making it easy to set several sensors to start at the same time
Call for price match
Related Products: BaroSCOUT
Brand: Seametrics
Features
Measures level and temperaure
Thermally compensated—great where water temperatures vary, such as in streams or industrial tank applications
± 0.05% FS
Low power—4.5 year battery life
316 stainless steel, fluoropolymer, and acetal construction (titanium optional)
Modbus® RTU protocol—for great flexibility
on-volatile memory—your data will not be lost in the event of a power failure
Pause logging feature—temporarily pause the logging while repositioning or transporting sensor
Delayed start feature—state a specific future start time, making it easy to set several sensors to start at the same time
Call for price match
Related Products: BaroSCOUT

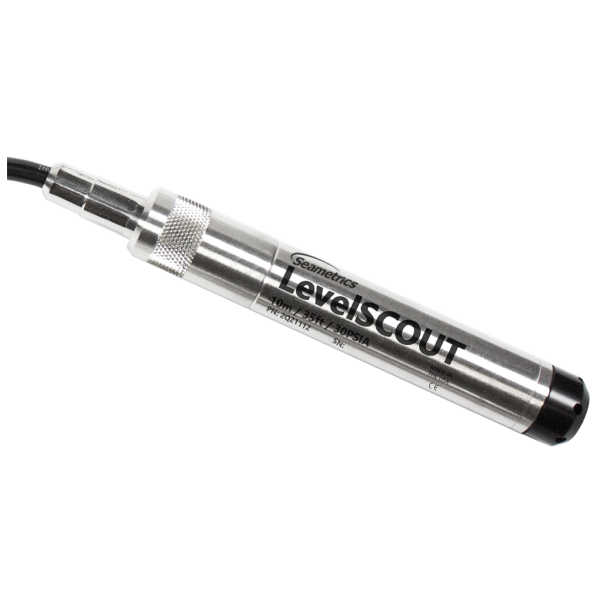

Low-cost Level & Temperature Datalogging -LevelScout

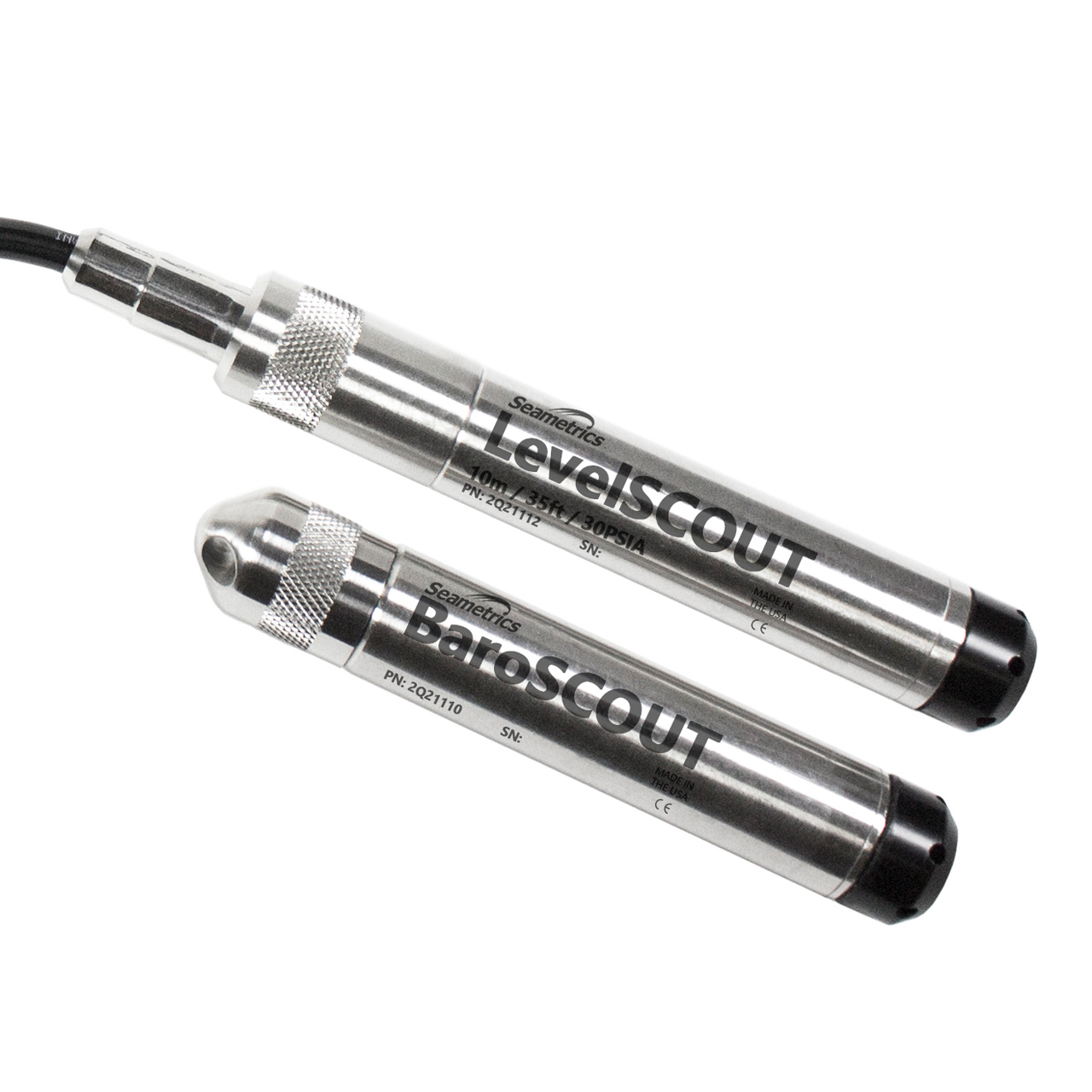

The Seametrics LevelSCOUT Smart Sensor is an integrated data logger and level/temperature sensor and is ideal for site assessments, tidal studies, environmental monitoring, surface water discharge measurement, and aquifer level monitoring, as well as aquifer storage and recovery. This sensor networks with all of the Seametrics Smart Sensor family. This industry-standard digital RS485 interface device records up to 50,000 records of level, temperature, and time data, operates with low power, and features easy-to-use software with powerful features. Constructed with 316 stainless steel or grade 2 titanium, acetal, and fluoropolymer, this sensor provides high-accuracy readings in rugged and corrosive field conditions. The LevelSCOUT is an absolute sensor, requiring no vent tubes, desiccant, or bellows. It can be paired with a BaroSCOUT barometric sensor and used with the Aqua4Plus 2.0 Barometric Compensation Utility to adjust the LevelSCOUT readings for current atmospheric pressure. A replaceable 1/2 AA 3.6v lithium battery powers the LevelSCOUT. The unit is programmed using our easy-to-use control software. Once programmed the unit will measure and collect data at the time interval set. While most will use the LevelSCOUT with Seametrics’ Aqua4Plus 2.0 software, it is by no means limited to that software. You can use your own Modbus® RTU software or logging equipment to read measurements via RS485, tying into your existing telemetry and control systems.
Ordering Options
2Q21112 LevelSCOUT Level & Temperature Logger, Stainless Cableless 30 PSIA
2Q21114 LevelSCOUT Level & Temperature Logger, Stainless Cableless - 50 PSIA
2Q21116 LevelSCOUT Level & Temperature Logger, Stainless Cableless - 100 PSIA
2Q21118 LevelSCOUT Level & Temperature Logger, Stainless Cableless - 300 PSIA
2Q22112 LevelSCOUT Level & Temperature Logger, Titanium Cableless - 30 PSIA
2Q22114 LevelSCOUT Level & Temperature Logger, Titanium Cableless - 50 PSIA
2Q22116 LevelSCOUT Level & Temperature Logger, Titanium Cableless - 100 PSIA
2Q22118 LevelSCOUT Level & Temperature Logger, Titanium Cableless - 300 PSIA
Seametrics’ LevelSCOUT and BaroSCOUT Accessories
7A50520 Submersible Cable Harness Accessory - 25 ft.
7A50521 Submersible Cable Harness Accessory - 50 ft.
7A50522 Submersible Cable Harness Accessory - 75 ft.
7A50523 Submersible Cable Harness Accessory - 100 ft.
7A50524 Submersible Cable Harness Accessory - 200 ft.
7A50525 Submersible Cable Harness Accessory - 500 ft.
7A50630 Submersible Cable Harness Accessory - 10 Meters
7A50631 Submersible Cable Harness Accessory - 30 Meters
7A50632 Submersible Cable Harness Accessory - 60 Meters
7A50633 Submersible Cable Harness Accessory - 100 Meters
7A50634 Submersible Cable Harness Accessory - 150 Meters
7A50635 Submersible Cable Harness Accessory - 200 Meters
7A23114 Stainless Steel Cableless Adapter Replacement Kit Accessory
7A62115 Battery Replacement Kit Accessory
7A40014 End Cone Replacement Kit Accessory
7A26116 Stainless Steel Cableless Cap Accessory
Applications
Site assessments
Tidal studies
Environmental monitoring
Surface water discharge measurement
Aquifer level monitoring
Aquifer storage & recovery
