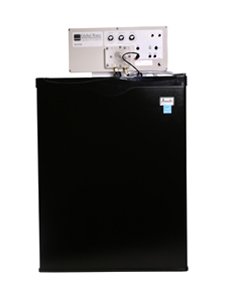

WS700R Refrigerated Wastewater Sampler
Brand: Global Water/xylem
The WS700R Sampler is designed specifically to meet a wide variety of sampling requirements where refrigeration is required; including industrial discharge, process control, water and wastewater treatment plants, sewers, rivers and streams.
Features
Sample Size control allows you to take time-weighted composite samples from 50 ml to 2 liters
Trigger inputs to control sample collection
Automatic backflush clears pickup strainer and hose
Brand: Global Water/xylem
The WS700R Sampler is designed specifically to meet a wide variety of sampling requirements where refrigeration is required; including industrial discharge, process control, water and wastewater treatment plants, sewers, rivers and streams.
Features
Sample Size control allows you to take time-weighted composite samples from 50 ml to 2 liters
Trigger inputs to control sample collection
Automatic backflush clears pickup strainer and hose
Brand: Global Water/xylem
The WS700R Sampler is designed specifically to meet a wide variety of sampling requirements where refrigeration is required; including industrial discharge, process control, water and wastewater treatment plants, sewers, rivers and streams.
Features
Sample Size control allows you to take time-weighted composite samples from 50 ml to 2 liters
Trigger inputs to control sample collection
Automatic backflush clears pickup strainer and hose
The WS700R Refrigerated Wastewater Sampler gives you complete control over your water sampling process. With the water sample size control, you can take individual time-weighted samples or full bottle descrete samples in a 2-gallon sample bottle. The water sample interval control allows you to set the time between individual refrigerated composite samples, or enable the external trigger mode for flow proportional sampling.
Specifications
Operating Temperature 0° to +70°C
Materials Enclosure: Expanded UV protected PVC
Bottle: 2.5 gallon Polyethylene0
Pickup Hose: 15’ reinforced PVC 1/4” ID polyethylene flexible tubing section with intake strainer
Pump Tubing: Norprene® 1/4” ID, 7/16” OD
Sample Pump Flow Rate: 1000 ml per minute at a 4 foot head Type: Peristaltic Maximum Lift: ~20 feet
Battery: Rechargeable 5 AH Gel Cell Battery Life ~1 hour continuous pumping under load Standby: 3 months while still retaining enough power to run the pump to capacity is required.
Start Delay 16 time settings from 0 to 12 hours
Composite Interval: 15 time settings from 5 min. to 12 hours plus an external trigger mode setting
Sample Size: 15 composite sample sizes from 50ml to 2 liters plus a full bottle discrete setting (approximate sizes at 4 foot head)
External Trigger Input(s): 250mS minimum pulse width switch closure or 4 to 24VDC
Pulse Output(s): 5VDC one-second pulse, 1000ohm output impedance
Bottle Switch Input(s): Switch closure input, float switch in bottle Rain and Water Sensors Optional moisture sensors or switch closure inputs
Internal Fuse: 10A Slow-Blow Certificates CE Compliance
Dimensions: 26.25” H X 20.5” W X 21.25” D (10 x 8 x 8.5 cm)
Weight 38 lbs/17 kg (shipping weight 43 lbs/19.5 kg
