NCMB2 Non-Contact Clamp-On Ultrasonic Transit Time Flow Meter
BRAND: Noncontact Flow Meters
Ships in 5 - 7 business days.
Typical applications are water, sewage, cooling water, and chemicals.
Dedicated non-invasive clamp-on ultrasonic transit time flow meter for measuring flow rate, total and heating/cooling energy rates in liquids.
Features
-Clamp-on transducers
-Pipe sizes 0.5 to 100 inches (Depending on Model)
-Bi-directional flow -Install with no process shutdown
-No pressure head loss
-No moving parts to maintain or replace
-Reynolds, sound speed & temp compensation
-Display flow rate, total, temp, BTU
-Data logging stored on 8GB Micro SD Card
-Outputs 4-20mA, Pulse
-Communications Modbus, BACnet & more
BRAND: Noncontact Flow Meters
Ships in 5 - 7 business days.
Typical applications are water, sewage, cooling water, and chemicals.
Dedicated non-invasive clamp-on ultrasonic transit time flow meter for measuring flow rate, total and heating/cooling energy rates in liquids.
Features
-Clamp-on transducers
-Pipe sizes 0.5 to 100 inches (Depending on Model)
-Bi-directional flow -Install with no process shutdown
-No pressure head loss
-No moving parts to maintain or replace
-Reynolds, sound speed & temp compensation
-Display flow rate, total, temp, BTU
-Data logging stored on 8GB Micro SD Card
-Outputs 4-20mA, Pulse
-Communications Modbus, BACnet & more
BRAND: Noncontact Flow Meters
Ships in 5 - 7 business days.
Typical applications are water, sewage, cooling water, and chemicals.
Dedicated non-invasive clamp-on ultrasonic transit time flow meter for measuring flow rate, total and heating/cooling energy rates in liquids.
Features
-Clamp-on transducers
-Pipe sizes 0.5 to 100 inches (Depending on Model)
-Bi-directional flow -Install with no process shutdown
-No pressure head loss
-No moving parts to maintain or replace
-Reynolds, sound speed & temp compensation
-Display flow rate, total, temp, BTU
-Data logging stored on 8GB Micro SD Card
-Outputs 4-20mA, Pulse
-Communications Modbus, BACnet & more
The NCMB2 Series ultrasonic transit time flow meter clamps onto the outside of pipes and does not contact the internal liquid. It operates on clean liquids as well as those with small amount of suspended solids or aeration. It utilizes the latest innovations in non-contact flow metering technology to optimize the performance of your flow monitoring, process control, balancing or batching applications.
The NCMB2 is available in two configurations. Contact us for additional details or a customized sales quote.
NCMB2-F (Flow Meter Model)
Flow model indicates flow rate and total with a pulse, 4-20mA output, Modbus RTU or BACnet MS/TP communications. Other communications options available.
NCMB2-E (Energy/Flow Meter Model)
Energy/Flow model indicates flow rate, total, temperature, and BTU with a pulse, 4-20mA output, Modbus RTU or BACnet MS/TP communications. Other communications options available. Typical applications are heating/cooling hydronic loops.

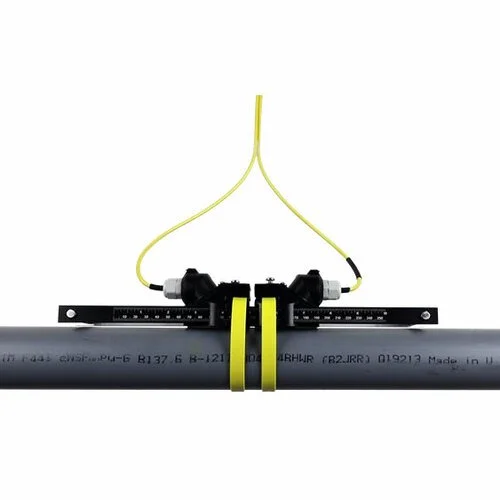

Universal clamp-on transducers for use with the NCMB2 Series ultrasonic flow meter
Pipe Size Configuration
Small pipe / Adjustable - Pipes 1/2 to 2 inches (Custom Configuration) (Contact us for pricing)
Medium pipe / Adjustable - Pipes 2 to 36 inches (Standard Configuration)
Large pipe / Adjustable - Pipes 8 inches and larger (Contact us for pricing)
(Submersible) Medium pipe / Adjustable - Pipes 2 to 36 Inches
(Submersible) Large pipe / Adjustable - Pipes 8 inches and larger (Contact us for pricing)
(High Temperature) Medium pipe / Adjustable - Pipes 2 to 36 inch (Contact us for pricing)
Cable Lenght Configuration
(15ft) - (30ft) - (50ft) - (100ft) (Contact us for pricing on other options)
NCMB2 Specifications
Liquid Types: Most clean liquids or liquids containing small amounts of suspended solids or gas bubbles
Flow Accuracy Medium and Large Pipes: ± 0.5% ± 0 0.049 ft/s (0 015 m/s)
Small Pipes: 1 in (25 mm) and larger = ±1% ± 0 03 ft/s (0 009 m/s) 3/4 in (20 mm) and smaller = ±1% of full scale
Repeatability: 0.2% above 1.5 ft/s
Velocity Medium and Large Pipes: Up to 40 ft/s, depending on pipe and fluid
Small Pipes: Up to 20 ft/s, depending on pipe and fluid
Straight Run Requirements: 10 diameters upstream, 5 diameters downstream from the single elbow - typically for flow rates of 10 fps (3.048m/s)
Certification and Compliance: Review datasheet for more details
Transmitter Power Options: 24V DC/AC: 9…28V DC @ 8 W max or 20…26 AC 47…63 Hz @ 0 5 A max, 2 Amp slow-blow fuse, not field replaceable
Mains AC: 85…264V AC 47…63 Hz @ 24VA max 1 Amp slow-blow fuse, manually field replaceable
Display Keypad: 4-button navigation, keypad with tactile feedback; polyester film
Display: Flow rate / Total. 128 × 64 pixel LED backlit graphical display; adjustable brightness and timeout; polycarbonate window
Enclosure: NEMA Type 4X, IP67. Aluminum construction; painted; wall, panel or pipe mounting; stainless steel fasteners and mounting hardware; EPDM gasket
Ambient Temperature Range: –4…140° F (–20…60° C)
Storage Temperature Range: –40…176° F (–40…80° C)
Humidity: 0…85%, non-condensing
Configuration: Via optional keypad or configuration software; software available on USB drive or download
Units - Programmable: Velocity feet/second, meters/second
Volumetric total:
US Gallons, Million Gallons, Imperial Gallons, Million Imperial Gallons, Acre-Feet, Liters, Hectoliters, Cubic Meters, Cubic Feet, Oil Barrels (42 gallons), Fluid Barrels (31.5 gallons), Imperial Fluid Barrels (36 imperial gallons), Pounds (Kilograms) and custom units
Flow rate:
Acre Feet/Day, Liters/Second, Liters/Minute, Liters/Hour, Cubic Meters/Second, Cubic Meters/Minute, Cubic Meters/Hour, Cubic Feet/Minute, Cubic Feet/Minute, Cubic Feet/Hour, Gallons/Second, Gallons/Minute, Gallons/Hour, Million Gallons/Day, Imperial Gallons/Second, Imperial Gallons/Minute, Imperial Gallons/Hour, Million Imperial Gallons/Day, Oil Barrels/Day, Fluid Barrels/Day,
Imperial Fluid Barrels/Day and custom units
Energy total (Energy Meters):
British Thermal Unit (Btu), Thousand Btu, Millions Btu, Kilocalories, Mega calories, Kilowatt-hour, Megawatt hour, Kilojoules, Mega joules, Ton-hour (Refrigeration)
Heat/cooling rate (Energy Meters):
Btu/hour, Thousand Btu/hour, Millions Btu/hour, Ton (Refrigeration), Watts, Kilowatts, Megawatts, Kilojoules/hour, Mega joules/hour, Kilocalories/hour, Mega calories/hour
Temperature (energy meters): Fahrenheit, Celsius, Kelvin
Contact us for additional information
